How to build an auto / airline MagSafe power adapter
Stuart Schmitt
Updated 21 April 2008
Original document 16 January 2007

Apple sells a MagSafe cable that allows you to power a MacBook or MacBook Pro with an airline in-seat power connection. This cable has three problems—it won't charge your battery, it won't work in cars, and at $59 it is the most expensive DC power cord on the planet. There is a solution that offers battery charging and usability in cars, and it costs about the same. The idea is to modify your existing MagSafe power supply so that its cord can be detached and used with a universal notebook DC power supply.

  1. Converting a MagSafe power adapter
  2. A warning about the Apple Airline MagSafe Adapter
  3. About the MagSafe connector
  4. Charging strategy for Apple's MagSafe adapters
  5. How the universal notebook power adapters and their tips work
  6. EmPower in-seat power connectors
  7. Automotive cigar lighters
  8. Criticism of Apple regarding MagSafe
  9. More information / Contact me
Note: Click on some of the photos on this page to find high-resolution versions.

Converting a MagSafe power adapter

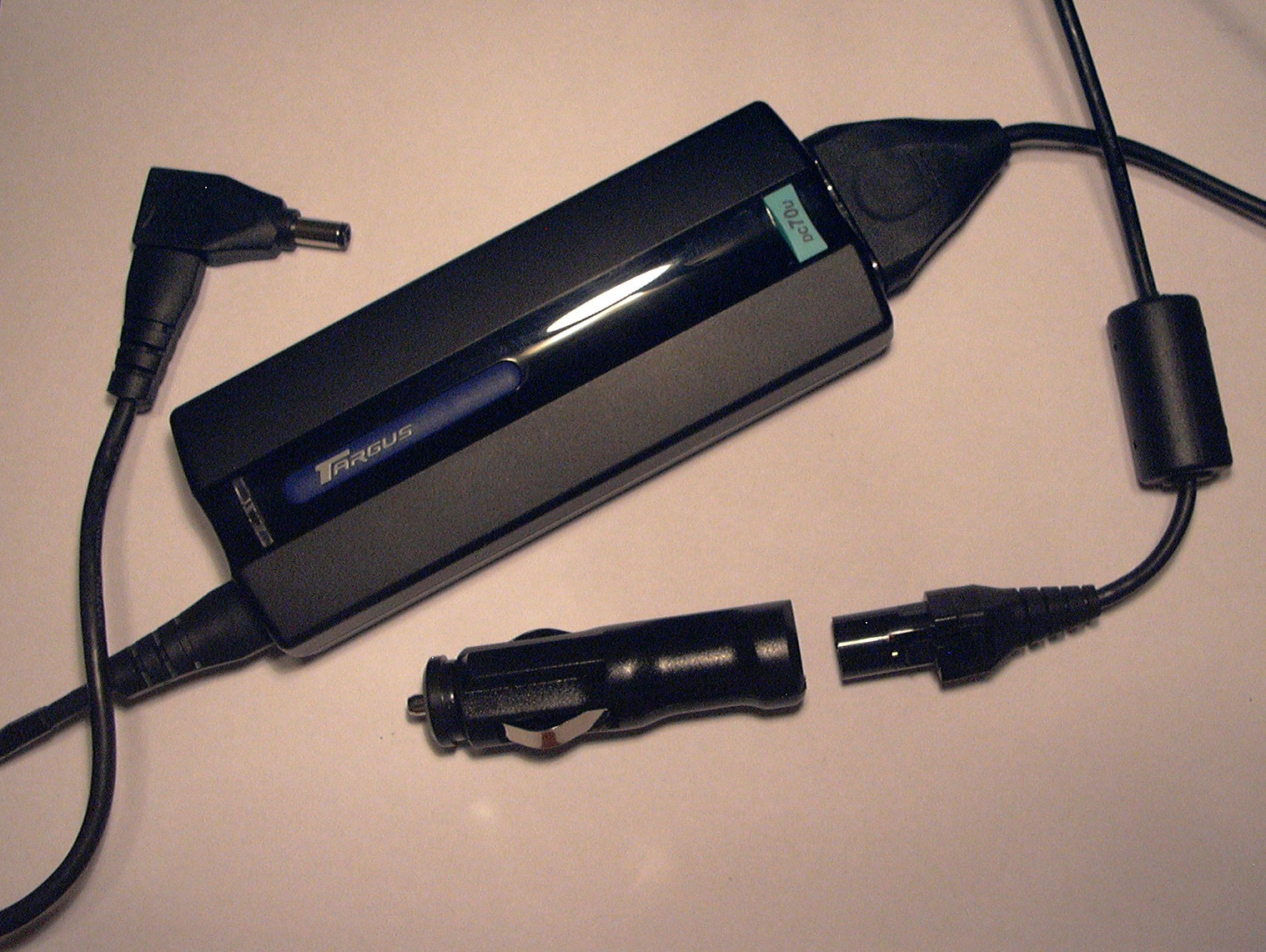

2.5 x 5.5 DC plug 2.5 x 5.5 DC plug Targus APD10US universal notebook power adapter Parts required
  • Apple MagSafe AC power adapter.

  • A Targus, Kensington, or iGo universal notebook DC power adapter. I purchased a Targus APD10US at Fry's for $30. That was a good deal; you can expect them to start at $60.

  • A 5.5 mm OD / 2.5 mm ID DC power jack.

  • A 5.5 mm OD / 2.5 mm ID DC power plug.

  1. Cut the computer-side power cable on your current Apple MagSafe power adapter.

  2. Put the DC power jack on the severed cable. Connect the center conductor to the center contact and the shielding wire to the outer ring. This makes a standard center-positive connection that is compatible with the universal power adapter.

    Note that the Apple MagSafe cord has only two conductors (see below), so the DC power plug/jack is an appropriate connection.
Completed cable

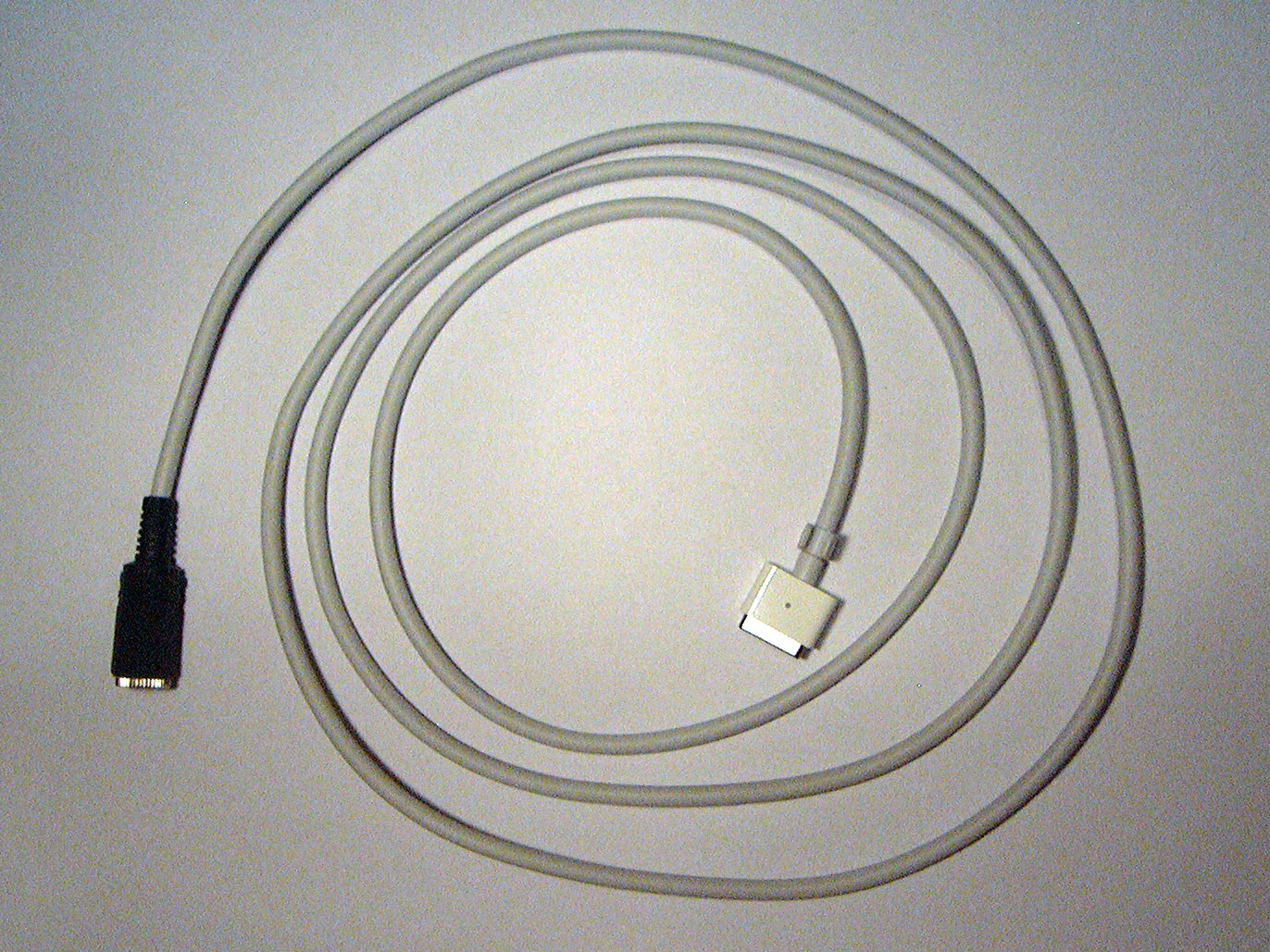

Completed MagSafe cable

Using your cable

Tips #3 and #4 (both included with your universal DC power adapter) will mate with the MagSafe cable you made. Tip #3 supplies 19.5 V while tip #4 supplies 16.5 V. Either will work, but using tip #3 may result in greater than desired power consumption. Use tip #4 if your battery is more than 71% charged; that mimics the behavior of the Apple power adapter.

The battery in a MacBook Pro can be charged from empty with tip #4 even while the computer is being used; it just takes a lot longer.

Use tip #4 if you have a MacBook (not a -Pro).

The LED in the MagSafe connector will behave a little differently when your cable is plugged into a universal power adapter. The LED will continue to indicate red for charging and green for charge maintenance. When you unplug the MagSafe connector, however, it will stay illuminated in the same color. With the Apple AC power adapter, the LED turns off immediately after unplugging the MagSafe connector.

Using your Apple power adapter

Put the DC power plug on the Apple MagSafe AC power adapter (on the cable you cut earlier). Connect the center conductor to the center pin. Now you can continue to use your MagSafe cord with your existing AC adapter when you have an AC outlet available.
Completed cable

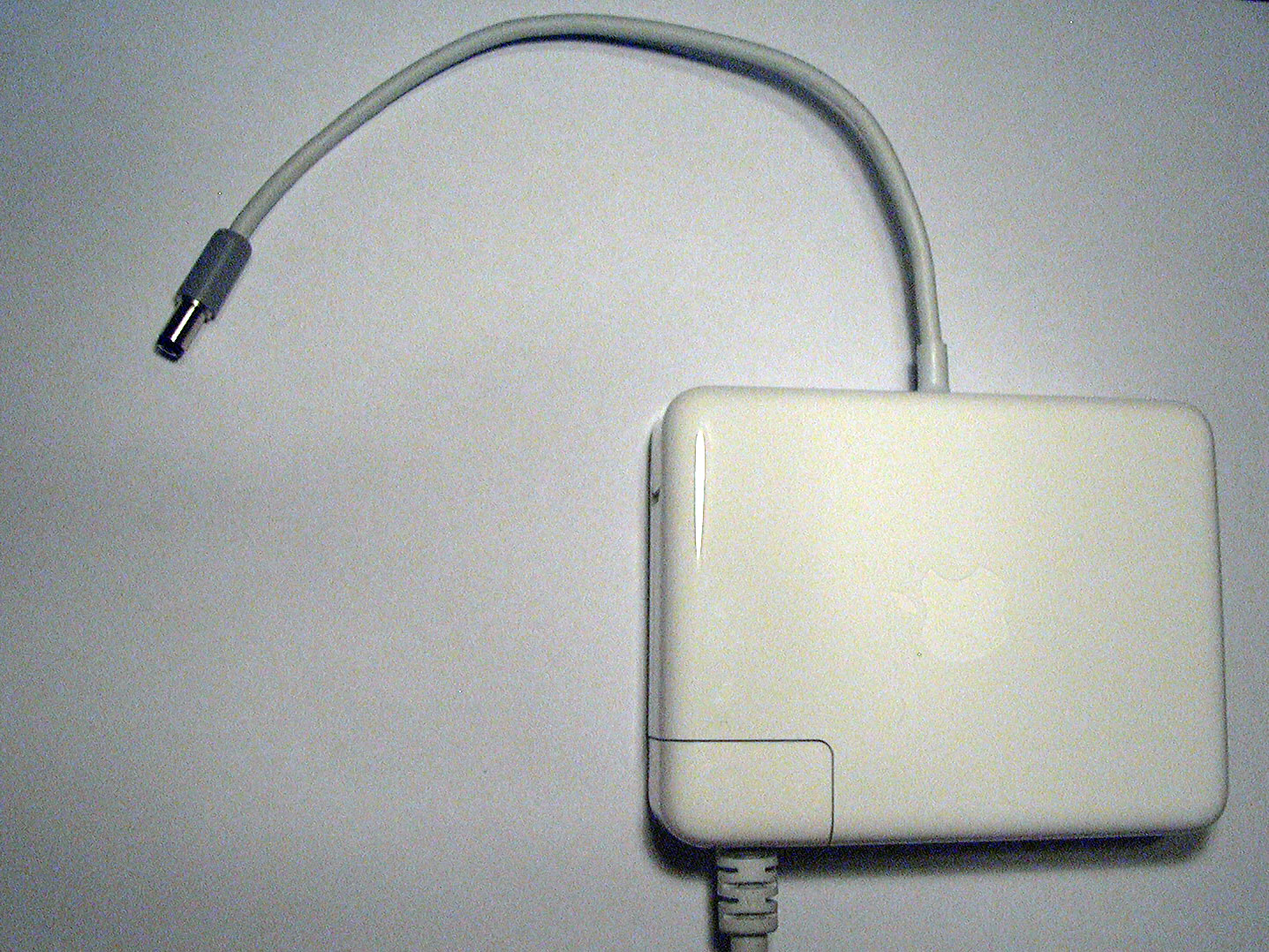

Apple MagSafe adapter after modification

A warning about the Apple Airline MagSafe Adapter

The modification I suggest above does not fully work with the Apple Airline MagSafe Adapter. Apple warns that the adapter powers but does not charge the computer's battery. Their warning is correct. Previously, I had thought that the charging issue was purely a consequence of the low voltage from airline in-seat power connections (15 V, see below), but it turns out that there is no charging regardless of the voltage supplied to the cable. Credit goes to Kieran Hervold for discovering this and reporting it to me.

In past versions of this page, I suggested modifying a cheaper Airline MagSafe Adapter following the steps above, or even using a cigar lighter socket to achieve the same result without cutting any of your fancy Apple cables. Unfortunately, that was bad advice. I apologize to all those who pursued this solution and found unsatisfactory results.

That said, some people may want to make a “universal” MagSafe cord that doesn't need to charge the computer's battery.  With that in mind, the figure below shows an adapter cord that you could assemble without cutting your fancy Apple cables.  Wire everything center positive.  Again, with the following adapter, the battery will not charge.

2.5x5.5 to cigar adapter

About the MagSafe connector

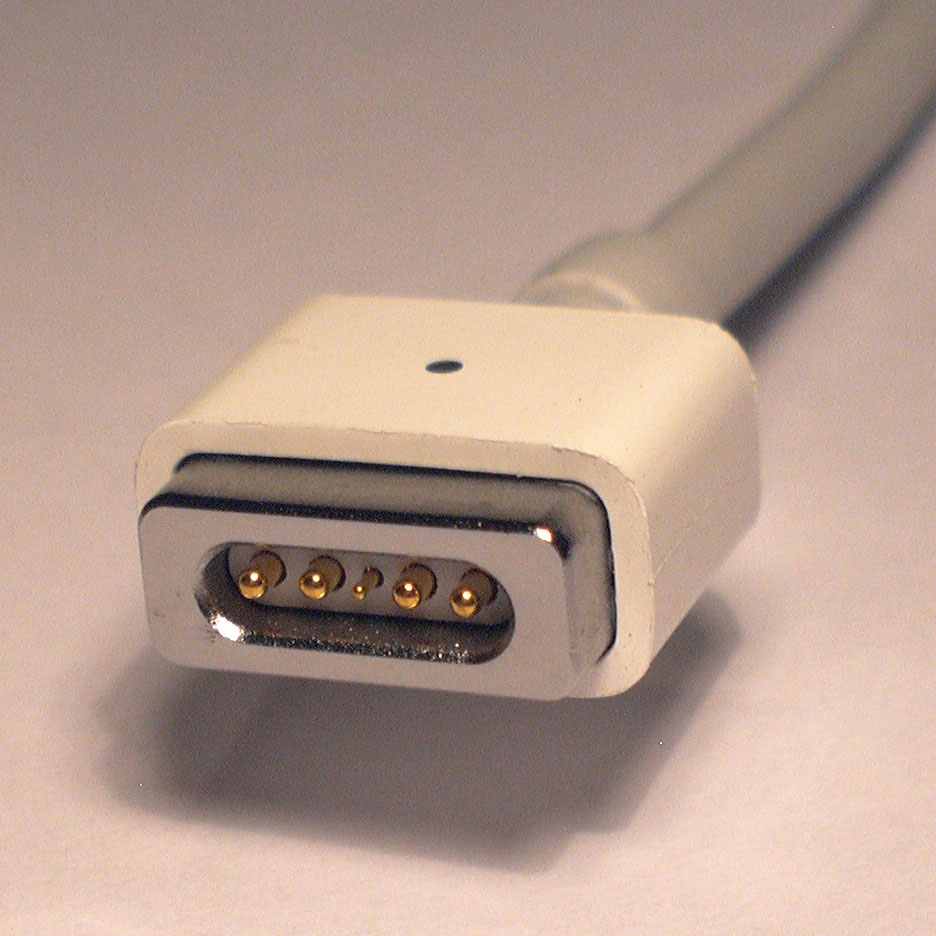

MagSafe connector The MagSafe connector has a symmetric pinout:
 Pin(s)  Function
1, 5 V-
2, 4 V+
3 LED/charging control?

The LED is somewhat of a mystery to me. It illuminates green if the voltage between V- and V+ is greater than about 16 V. The Apple power adapter drops to about 6.25 V if it has no load, so the LED turns off. The universal adapters supply their selected voltage regardless of load, so the LED will stay illuminated even if the computer is not connected.

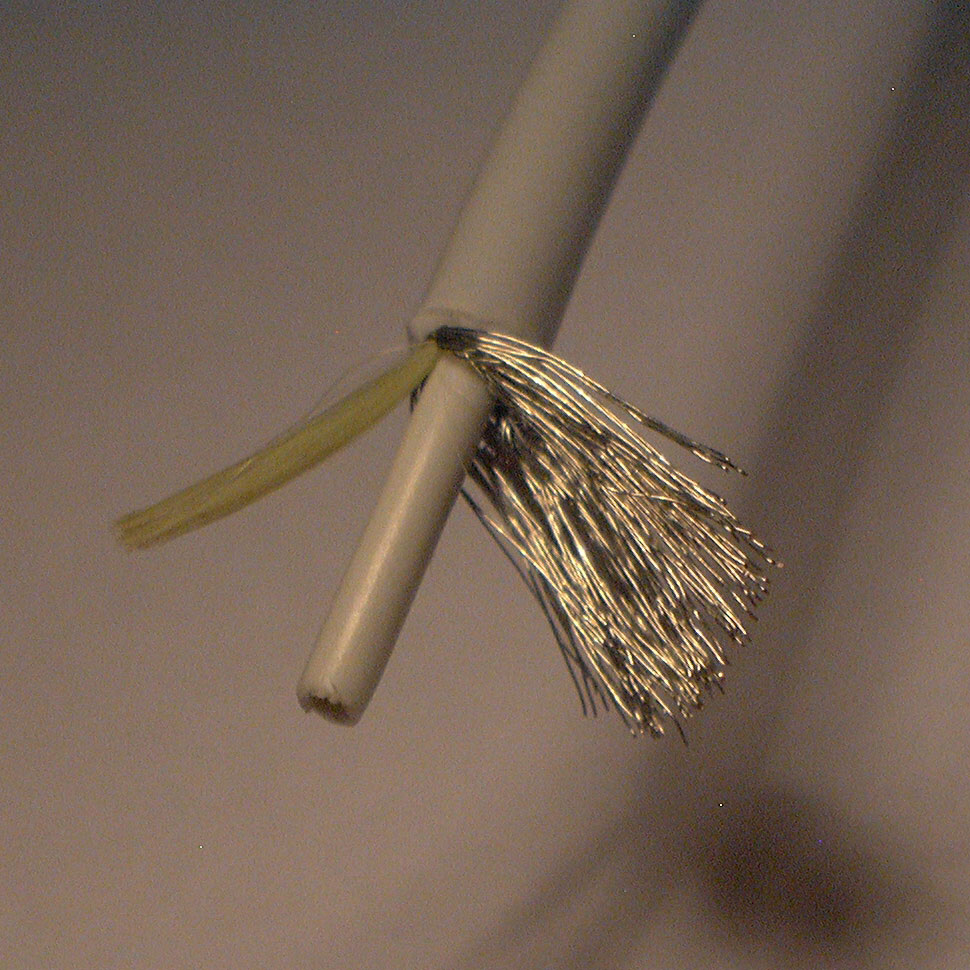

Wire used in Apple MagSafe adapterThe MagSafe LED turns red if the computer “knows” that it is charging. Therefore, I suspect that pin 3 (the center pin) of the MagSafe connector controls whether the LED is green or red. With an ohmmeter, pin 3 registers about 426 kΩ to the V- pins and no circuit with the V+ pins. Also worth noting is that, with a universal adapter, the LED remains illuminated in the same color when you unplug the MagSafe connector from the computer.

There is no harm in putting a 2-contact connector in the middle of the Apple MagSafe adapter's cable. As you can see in the photo to the left, there are only two conductors (that's a string sticking out to the left). There is no additional signaling that will be broken by the modification.

Kieran Hervold has disassembled a MagSafe connector. Inside is a little integrated circuit (a “chip”) that I suspect controls the LED color. I also suspect that the chip inside the Apple Airline MagSafe Adapter is able to signal the computer to shut off the battery charging circuit.

Charging strategy for Apple's MagSafe adapters

65 W adapter

As far as I know, the 65 W adapter simply runs at 16.5 V at all times that the computer is connected.

85 W adapter

The 85 W adapter varies its voltage depending on its load. At maximum load—say, when charging a discharged battery—it supplies up to 18.5 V. At minimum load, it supplies 16.1 V to 16.5 V.

I monitored a charge-up from a battery at 37% to 100% with the screen at full brightness, a low CPU load, and the 802.11g turned on. Below 70% charge, the Apple adapter supplied between 17.0 V and 18.1 V. At 71% charge, the Apple adapter abruptly dropped down to 16.5 V. For the rest of the charging time, the voltage ranged from 16.1 V to 16.4 V.

How the universal notebook power adapters and their tips work

The universal adapter power tips have sense resistors in them that tells the adapter what voltage to supply. I have measured values of sense resistors and their resulting voltages for some of tips.

EmPower in-seat power connectors

Some airlines have installed in-seat power connectors in some of sections (usually only business and first classes) of their aircraft. This connection is called an EmPower receptacle, and it is a product of Astronics Advanced Electronics Systems. It supplies 15 VDC to power notebook computers directly; the idea is that it could power a notebook computer directly without the need for its bulky AC adapter (exactly as Apple's MagSafe Airline cable does). Many computers require more than 15 VDC, however, and consequently travelers usually end up carrying an additional DC-DC power adapter or a universal AC/DC-DC adapter like the Targus/Kensington/iGo. Because of this situation, many airlines are now installing 120 VAC receptacles.

Do not use tip #3 in an airplane.

The EmPower connector, pictured at right, has a 5 A (or 75 W) circuit breaker. Many modern notebook computers (including the MacBook Pro) can exceed that load capacity. Use tip #4 with MacBook Pro systems in order to keep power consumption below 75 W.

Photo credit: Astronic's website.
Additional info: Wikipedia.

Automotive cigar lighters

The standard 12 VDC sockets that are in almost every car are called cigar lighter receptacles, and their design is governed by standard J563 of the Society of Automotive Engineers. The receptacle inner diameter may be between 20.93 mm (0.824 in) and 21.01 mm (0.827 in), while the plug outer diameter may be between 20.73 mm (0.816 in) and 20.88 mm (0.822 in). The standard also states a maximum current rating of 8 A. As of 15 July 2007, Wikipedia has an excellent overview of SAE J563. The standard itself is a one-page document; it is almost certainly at your local engineering library.

Criticism of Apple regarding MagSafe

  1. The MagSafe connector's contacts are way too small for the large currents that may occur, especially when the battery is charging. Fires have occurred.

  2. The magnet used in the MagSafe connector can attract iron filings and other ferromagnetic materials. If you tinker in your shop frequently, you might generate a significant quantity of magnetic dust. The MagSafe connector can attract enough of them to lead to a short circuit between those closely spaced pins. That can lead to equipment damage—or worse, a fire.

  3. The strain reliefs on the MagSafe adapters are inadequate for the amount of pulling that the cable undergoes. This is a recurring problem with Apple; the strain reliefs on 2000-vintage AC adapters (“yo-yos”) for iBooks and PowerBooks were also inadequate. Comment to Apple: Never sacrifice reliability for aesthetics.

  4. The Apple Airline MagSafe Adapter is a simple straight-through power cord. It's probably about $1 of parts, $1 of license to Astronic, and $57 of price gouging.

  5. Apple does not license MagSafe to third party manufacturers. It is understandable for a company to keep design elements proprietary. However, such proprietary design elements should not impede customers from finding products that meet all of their needs. Apple is clearly failing to meet its customers' needs with its MagSafe connectors. This negligence can be read as cluelessness or as arrogance.

  6. It's called a cigar lighter receptacle, not a “20 mm power port.” Apple is fond of using proprietary names for things, but it's silly to apply one to an automotive industry standard.

More information / Contact

In the time that this page has been on the web, I have received dozens of grateful e-mails from people who have needed 12 V power for their MacBooks. The reasons have varied from typical (car or airplane) to exotic (solar homes and sailboat trips around the world). I appreciate the e-mails, but I also apologize for the long delays that sometimes precede my responses. I keep myself pretty busy, and this stuff is not my my “day job.” With that said, feel free to contact me. I especially am interested to hear about any “neat” places or uses that my 12 V setup opens up to you and your computer.

And if you have any questions, please e-mail me—if something is unclear, hopefully I can offer some assistance. If you’re looking for more information, I do have a few extra notes that I've collected about the various topics covered in this page. And if you any additional information, I'd love to read it. With your permission, I'll probably include it in future versions of this page.

I have one more comment that does not seem to fit anywhere else on this page. Another website offers the modification I described above for a fee. If you are not comfortable with soldering, consider purchasing that service from them. I will not provide a link to that site because that site sells instructions on how to perform the modification. That strikes me as a little exploitive—information of this type should be free. Hence I have taken the time to put together this webpage. I have not seen the other site's instructions, but I am sure it contains the exact same steps I described above.
